|Piston ring number||53010006640|
|Number of piston rings||1|
|Piston pin number||715372|
Vertex is a company from Italy which produces original pistons for many currently produced two and four stroke dirtbikes. Their pistons are found in original KTM dirtbikes and their aftermarket range are known as 'Performance Pistons'. Vertex pistons are also popular for high-end tuning.

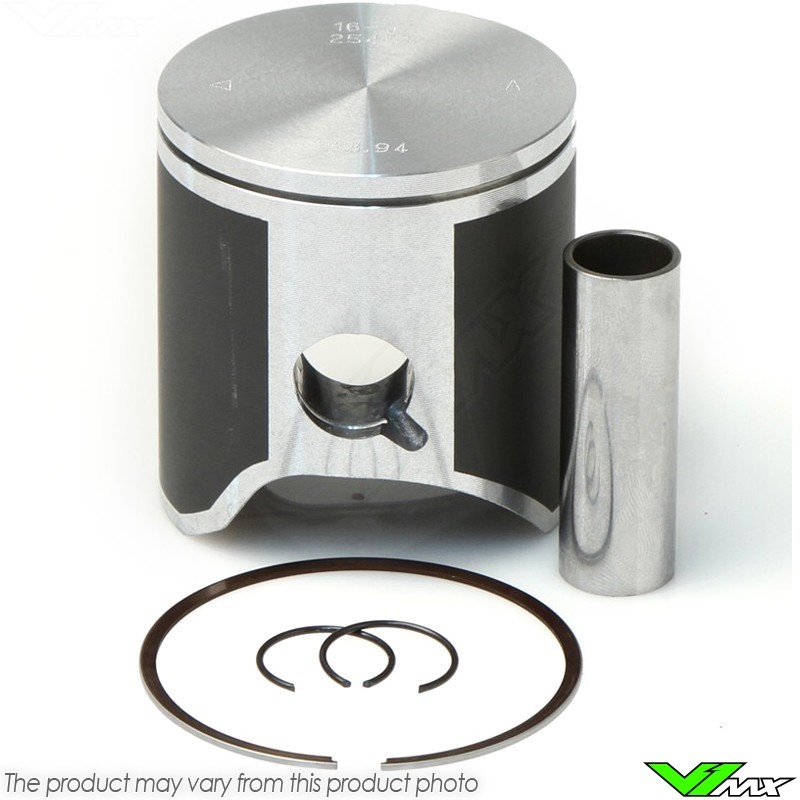

Vertex Pro Race Pistons are forged pistons. They have a longer life than a cast piston and offer better performance because it is lighter. The construction made with Vertex know-how ensures durability and more resistance to heat seizure.
The piston skirt is provided with a low friction surfacing layer that assists during the running-in process, to match the piston to the bore of the cylinder. It is also provided with weight saving cut-outs above the gudgeon pin opening and its pair of 1mm thick piston rings increase stiffness, stability and compatibility with higher motor speeds.
All pistons are made of high grade aluminium with 12-21% silicone. The silicone is essential for the quality of the piston for counteracting thermal expansion when the engine hits its operating temperature, which can influence the geometry of the piston. The high grade materials guarantees better piston tolerances which increase power.
Technical features of Vertex pistons:
Vertex Produces many different type of pistons. In the overview below you can check the main differences between the dirtbike piston types.
Replica: Cast piston in original OE form
Race: Cast piston developed with Vertex know-how
Pro: Forged Piston developed in alternative to cast, with Vertex know how and race shape
Replica BB: Cast piston in original OE form for big bore cylinder
Pro Replica: Forged piston in original OE form
Pro BB: Forged piston in original OE form for big bore cylinder
Pro Race: Forged piston developed with Vertex know-how and race shape profile
Pro HC: Forged piston developed with Vertex know-how, race shape profile and high compression ratio
Pro Race HC: Forged piston developed with Vertex know-how, one compression ring, race shape profile and high compression ratio
|Yamaha||YZ 250||1999 - 2019|
|Yamaha||YZ 250 X||2016 - 2019|
